System Architecture

The core abstractions, how a request flows through the system, and the design patterns behind them.

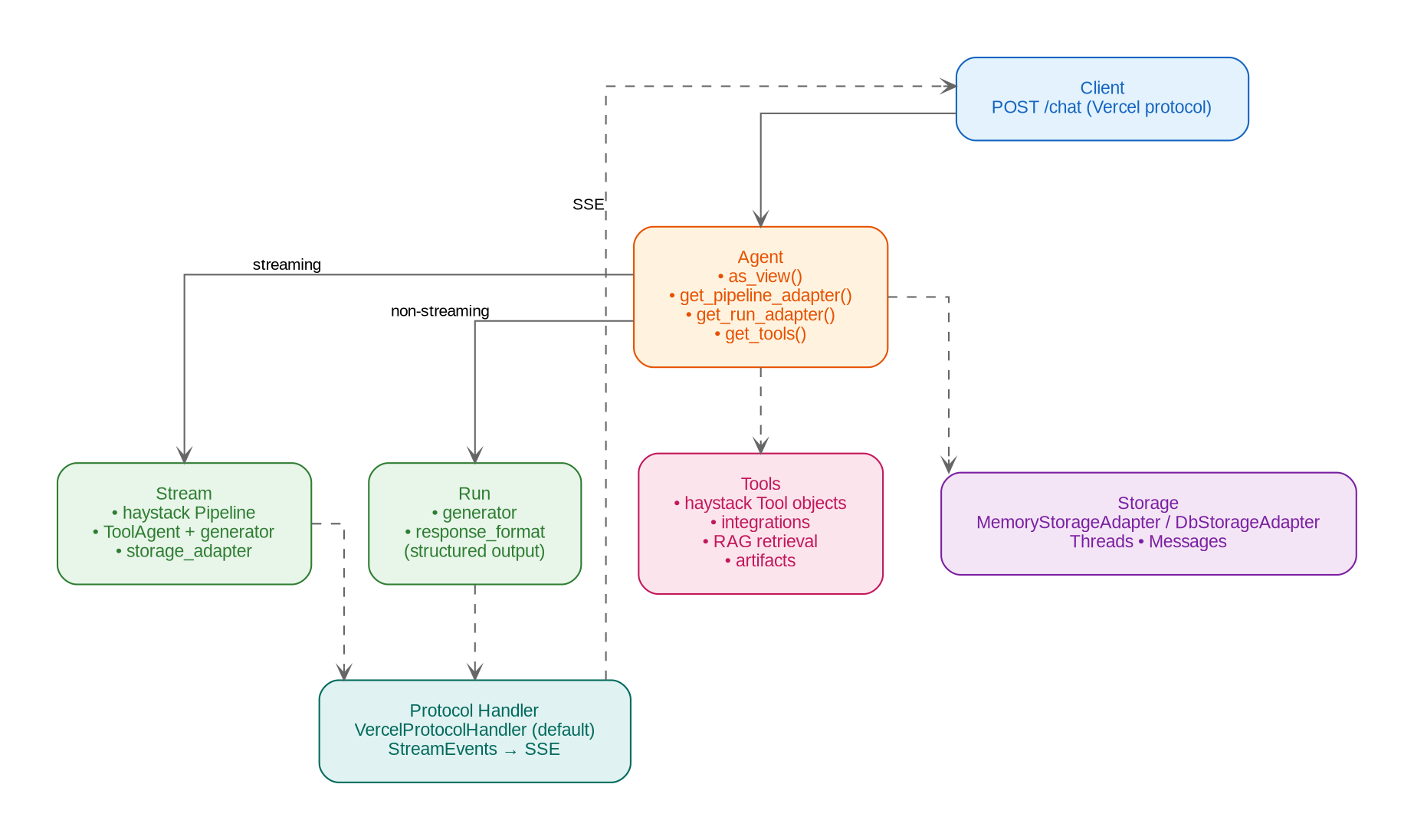

Overview

Components

Component	Responsibility	Page
`Agent`	Coordinator; configures everything	Agent
Registry + `AgentService`	Registration and stable-ID resolution	Agent Registry
`Stream` / `Run`	Haystack integration for chat and non-chat calls	Stream and Run
Protocol handler	Wire format (Vercel, OpenAI, custom)	Protocol Handler
Storage	Conversation persistence	Storage
RAG	Knowledge retrieval as tools	RAG

Each component has a base class defining its interface; implementations live in subclasses. The internal message type is ChatMessage (django_ai_sdk.common): protocol-agnostic, so any handler can consume it.

Request Data Flow

┌─────────────────────────────────────────────────────────────┐
│ 1. USER REQUEST                                             │
│    POST /api/chat with messages                             │
└──────────────────────┬──────────────────────────────────────┘
                       ▼
┌─────────────────────────────────────────────────────────────┐
│ 2. AGENT LAYER                                              │
│    agent.as_view(protocol_messages, thread_id, user)        │
│    ├─ Check CHAT permissions                                │
│    ├─ Convert protocol → ChatMessage                        │
│    ├─ Store last user message                               │
│    └─ Get pipeline adapter (Stream)                         │
└──────────────────────┬──────────────────────────────────────┘
                       ▼
┌─────────────────────────────────────────────────────────────┐
│ 3. STREAM LAYER                                             │
│    stream.stream(chat_messages)                             │
│    ├─ Generate UUID for message                             │
│    ├─ Run Haystack pipeline (ToolAgent)                     │
│    └─ Normalize chunks → StreamEvents                       │
└──────────────────────┬──────────────────────────────────────┘
                       ▼
┌─────────────────────────────────────────────────────────────┐
│ 4. HAYSTACK PIPELINE                                        │
│    Streaming chunks + tool calls                            │
└──────────────────────┬──────────────────────────────────────┘
                       ▼
┌─────────────────────────────────────────────────────────────┐
│ 5. PROTOCOL CONVERSION                                      │
│    Events → Vercel Protocol Parts (SSE)                     │
└──────────────────────┬──────────────────────────────────────┘
                       ▼
┌─────────────────────────────────────────────────────────────┐
│ 6. STORAGE                                                  │
│    StreamWriter → ChatMessage → Storage (same UUID)         │
└─────────────────────────────────────────────────────────────┘

Data Flow

Design Patterns

Pattern	Idea	Where
Protocol-agnostic messages	Internal `ChatMessage` works with any frontend protocol	Protocol Handler
Event-driven streaming	Normalized events decouple adapters from protocols	Stream Events
Single ID source	`Stream.stream()` generates the UUID once; SSE, storage, and endpoints share it	ID Generation
Storage adapter registry	Fastest-first detection of which backend holds a thread	Custom Storage Adapters
RAG provider caching	Expensive index building happens once, cached per agent + memory	RAG
